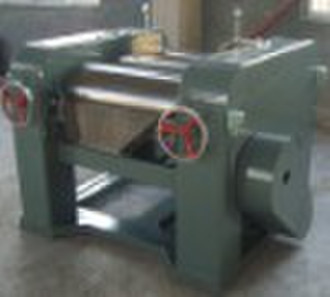

Three Roll Mill

Description BFSG Three Roll Mill is one of common equipment to reduce particle size, which mainly used in paint, printing ink, pigment, plastics industry, to produce the products with high viscosity and small fineness requirements. Due to mutual squeezing of three horizontal alloy rollers and friction with different velocity, great milling effect can be realized.Features- Integrated Steel construct body with solvent-resistance surfacing coatings - Use chain wheel transmission technology, prolong life time and decrease noise - All the gears and bearings are dipped inside lubricant oil, prolong life time - Adjust distance between the rollers by handy wheel easily Main Technical Data ModelBFSG150BFSG260BFSG305BFSG406BFSG406LRoller diameter (mm)150260305406406Working length (mm)3006757608101000Speed(rpm)Slow Roll3423211414Middle Roll7864604343Fast Roll181183171135135Motor power (kw)2.27.5111522Overall size(mm)980x750 x9151800x1400 x11801950x1520 x12002250x1950 x15002530x1810x 1500Weight(kg)5301900375050005800
